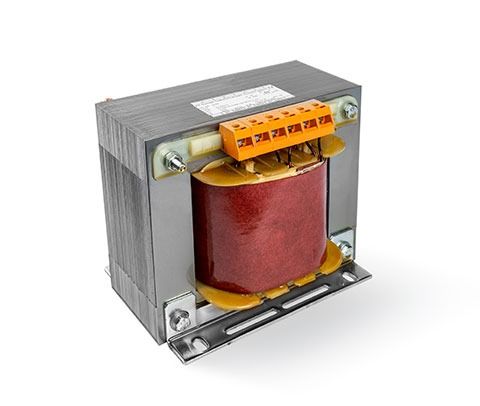

Single-phase transformersAEE manufactures fully custom-made, but also standardized single-phase transformers. This can be done in single pieces, small runs or larger runs, entirely according to your specifications. Finishing in a housing is also possible. We pay a lot of attention to the safety, service life and reliability of the single-phase transformers.
The important property of a single-phase transformer is that it has separate windings and one galvanic coupling between the primary and secondary side. This guarantees a high level of safety. These transformers, also called isolation transformers, can be used for various applications. The application also largely determines the standard that a transformer must meet. |
Description
AEE single-phase transformers have a standard frequency of 50/60 Hz and belong to insulation class E and protection class IP00. The single-phase transformer is available in various versions and can be extended with additional options.
Characteristics of the single-phase transformer:
- Single-phase transformers with separate windings
- Standard frequency 50/60Hz
- Air cooled
- Insulation class E
- Protection class IP00
- Type of version, from EI60 to EI240 long side.
- Single-phase transformers are also available in 2 legs, upright from UI60 to UI240
(see Dimensions tab for more information) - Designed with touch-safe terminals
- Reliable and long service life
Transformers can easily be overloaded briefly with 10-15%.
Options
Options for the single-phase transformers:
- Additional branches
- Extra windings
- Installation in enclosures with protection rating starting from IP21 upwards
- Fuse protection on transformer by means of terminal fuses
- Earthing screens

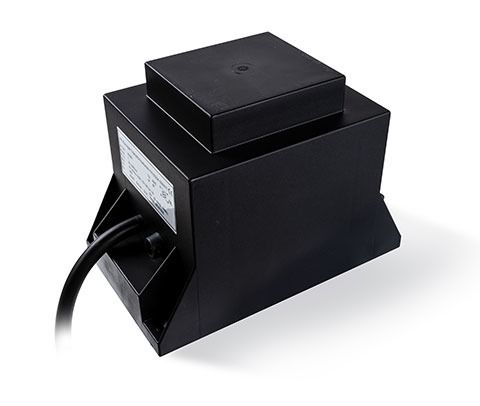

- Encapsulated variants
- Print mounting / Din rail mounting
- Insulation class other than E (= standard)
- Other protection class IP
- Other frequency range (standard 50/60 Hz)
Certification/Safety
All AEE transformers are manufactured according to the NEN- IEC61558 standard and are CE marked. AAE transformers can also be built with Lloyds quality mark, and according to the UL/CSA standards.
AEE also helps the customer with safety. We use our own quality system, which can be adapted to the wishes and requirements of the customer.
