UL transformers

AEE together with a partner produces fully customised UL-certified transformers in the following ranges:

  • Single phase transformers, 50VA to 1000VA
  • Three-phase transformers, 5KVA to 80KVA



Production can take place in single pieces, small runs or larger runs.

Description

The UL-certified transformers are single and three-phase transformers with separate windings, 50/60 Hz, and suitable for an ambient temperature of up to 45°C.

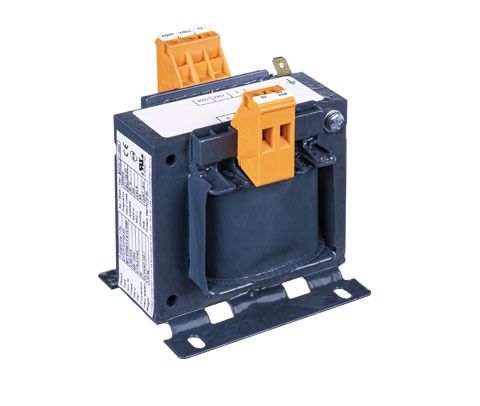

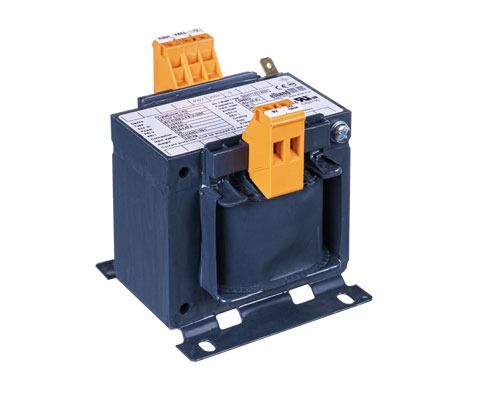

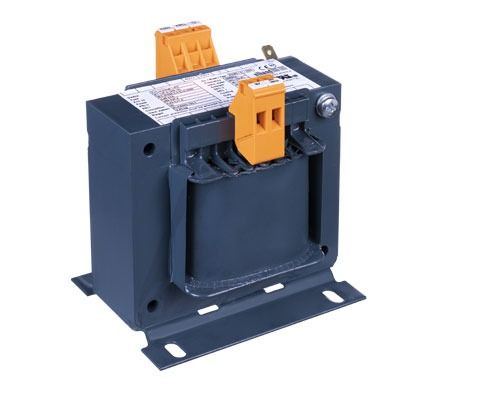

Properties of UL single phase transformers:

  • Rated power of 50VA to 1000VA
  • Primary voltages of 100V to 600V, with a maximum of 10 tappings depending on the rated power
  • Secondary voltages of 24V to 600V, with a maximum of 3 different windings
  • Frequency 50/60Hz
  • Insulation class F, 155 degrees Celsius
  • Protection class IP00
  • In accordance with the following standards: UL-5085-1, UL5085-2 and PN-EN 61558-2-4
  • UL file E498730
  • Product code according to UL: XPTQ2 and XPTQ8



Properties of UL three-phase transformers:

  • Rated power of 5KVA to 80KVA
  • Primary voltages of 3x100V to 3x600V, with a maximum of 2 tappings
  • Secondary voltages of 3x100V to 3x600V
  • Frequency 50/60Hz
  • Winding material: copper or aluminium
  • Insulation class H, 180 degrees Celsius
  • Protection class IP00
  • In accordance with the following standards: UL-1561 and PN-EN 60076-11
  • UL file E494157
  • Product code according to UL: XQNX2 and XQNX8
